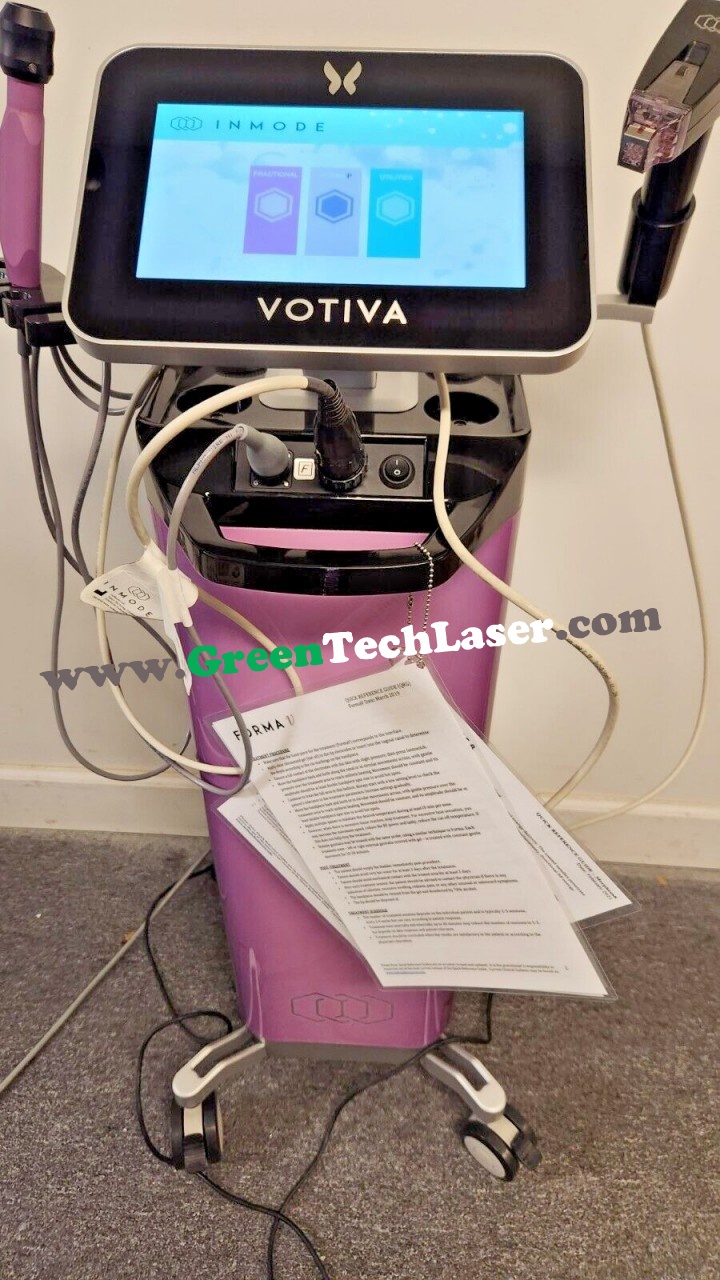

Votiva PRODUCT SPECIFICATIONS

Input Power

• Main Line Frequency (nominal): 50-60 Hz
• Input Voltage (nominal): 100-240 VAC
• Input Current(rms): 2A

Operating Parameters

• Ambient Temperature Range: 15 – 30 degrees C[59 – 86 degrees F]
• Relative Humidity: 30% to 80%, non-condensing
• Atmospheric Pressure: 90-110 kPa
• Warm-up Time: If transported or stored at room temperatures outside the operating temperature range, allow one hour for the device to reach room temperature before use.
• RF Maximum Output energy: 40[energy levels]
• RF Frequency: 1[MHz] + or – 2%
• FormaV Vaginal Treatment Zone: 10-20 cm2
• RF Energy Level: 20-30
• Cut-Off Temperature: As High as Tolerable Starting at 40 Degrees Celsius

Transport and Storage

• Ambient Temperature Range: -20 – 65 degrees C[-4 – 149 degrees F]
• Relative Humidity:0% to 80%, non-condensing
• Atmospheric Pressure:50 to 110 kPa

Dimensions

System: 35cm W x 35cm D x 100cm H [18.2″ W x 18.2″ D x 40″ H]

Handpiece cable: 250 CM L [100″ L]

Weight

• System: 35cm W x 35cm D x 100cm H [18.2″ W x 18.2″ D x 40″ H]
• FormaV Applicator: 0.22 Kg [0.5 lbs.]
• FractoraV Applicator: 0.22 Kg [0.55 lbs.]

Additional “Add-On” Applicator Available:

FRACTORA

• 24 Pin: Type – Full Thickness Dermal; Configuration – 6×4; Pin Length – 3000u; Ablation Depth – 3 mm; Heating Depth – Between 3-5 mm; Max Output Energy 62mj/pin; Output Frequency – 1 MHz; Repetition Rate – Up to 2pps
• 24 Pin Coated: Type – Deep and Subdermal; Configuration – 6 x 4 Coated; Pin Length – 3000 u, Ablation Depth – 3 plus mm; Heating Depth – Between 3-5 mm; Max Output Energy 62mj/pin; Output Frequency – 1 MHz; Repetition Rate – Up to 2pps
• 60 Pin: Type – Mid Dermal; Configuration – 10×6; Pin Length – 600u; Ablation Depth – 0.6-1 mm; Heating Depth – Between 3-5mm; Max Output Energy 62mj/pin; Output Frequency – 1 MHz; Repetition Rate – Up to 2pps

Votiva MANUFACTURER NOTES

WHAT IS VOTIVA?

A growing segment of practices are looking to provide the complete mommy makeover. This new concept is best addressed with a Votiva workstation that promotes overall women health and wellness, allowing for a broader range of feminine concerns to be solved.

KEY BENEFITS

Votiva innovative procedures can expand your practice to:

-Become part of a growing segment of women health and wellness

-Attract a broader patient base

-Offer an innovative and versatile solution for your patients

-Benefit from additional revenue streams above managed care

TECHNOLOGIES ON THE WORKSTATION

FormaV helps patients receive temporary improvements in blood circulation, muscle relief pain and muscle relaxation. FormaV is a therapeutic device for the treatment of sexual dysfunction or as an adjunct to Kegel exercises (tightening of the muscles of the pelvic floor to increase muscle tone).

Additional Applicator Available for “Add-On”

FRACTORA

Radio Frequency MicroNeedling.

Fractora is a fractional skin resurfacing and subdermal tissue coagulation device that bridges the gap between fractional lasers and surgical procedures. Clinical papers demonstrate outcomes such as: improvement in skin complexion, reduction in skin irregularities and restoring skin to a more youthful appearance. This all occurs within one session or multiple sessions, depending on patient preference. Fractora can be used on active cystic acne and acne scars.

• Addresses multiple problems, including treatment of wrinkles with fractional coagulation and ablation.
• Significant resolution of cystic acne and scars (improving acne scarring by 50%).
• Safe on skin type VI with little risk of post inflammatory hyperpigmentation (PIH) which is common with other resurfacing methods.
• Combination of fractional coagulation and volumetric heating through tips with various depths and pin density configurations.
• High efficiency of vascular and pigmented lesions due to high peak power and optimized output.
• Complete photo rejuvenation in 1 or 2 treatments versus 4-6 treatments with standard IPLs.
• Reduces treatment time thanks to large spot size and high pulse repetition rate.
• Strong sapphire cooling tip results in painless procedure.
• Fast pulse repetition rate at all settings. Highest peak power 3300W*
